01
Manual Hand-Crank Feed
Top-mounted crank arm with a smooth turned wooden knob allows controlled frame advancement.
Curio Gallery
01 / 04
01 / 04Vintage Hand-Cranked Roll Film Magazine Back with Cover — photograph 3
Highlights
Why this object
still matters.
This heavy-duty technical camera accessory features a robust cast-metal mounting flange coupled to a hand-cranked internal transport mechanism. The central rectangular sheet-metal housing encloses a roll film or paper feeding assembly flanked by precision rollers and operated via a top-mounted crank with a turned wooden knob. A form-fitting black sheet-metal protective cover with dual wire bail latches and a turned wooden carrying handle encloses the unit for transport.
02
Detachable Metal Hood
Protective sheet-steel transport cover completely shields the internal loading mechanism from light and impacts.
03
Turned Wooden Handle
Traditional contoured wooden grip secured by pivoting steel brackets provides secure portage.
04
Wrinkle-Finished Cast Frame
Distinctive period black wrinkle (crackle) enamel coats the primary cast-metal support arm.
05
Dual Wire Bail Clasps
Vintage spring-wire loop catches secure the transport hood firmly to the heavy mounting base plate.
06
Heavy-Duty Construction
Fabricated from robust cast iron and formed sheet steel built for demanding photographic studio environments.
Specifications
The useful facts,
clearly recorded.
Measurements, construction, identity, and seller-supplied details are kept together for direct comparison.
Reviewed · Curio catalogue
Maker
Unmarked (likely European or American technical camera maker)
Origin
Unknown
Year
1930
Department
cameras
Packed shipment
2.5 kg · 35 × 28 × 22 cm
Apparatus Type
Hand-cranked roll film / photographic paper magazine back
Drive Mechanism
Manual crank with turned wooden handle knob and geared roller feed
Housing Construction
Cast-metal frame with black wrinkle finish and folded sheet-steel enclosure
Protective Enclosure
Detachable sheet-metal transport hood with turned wooden bail handle and wire latches
Mounting Interface
Flanged base plate with dual perimeter latch loops
Serial Number
Not visible in photographs
Details
Close inspection,
recorded in photographs.
Detail № 01 · Vintage Hand-Cranked Roll Film Magazine Back with Cover — photograph 1
Detail № 02 · Vintage Hand-Cranked Roll Film Magazine Back with Cover — photograph 2
Heritage
A traceable life,
carefully recorded.
Provenance documentation was not supplied for this specific Vintage Hand-Cranked Roll Film Magazine Back with Cover; this listing is based on the supplied photographs only.
Studio Workflow
Engineered for Rapid Exposure Sequences

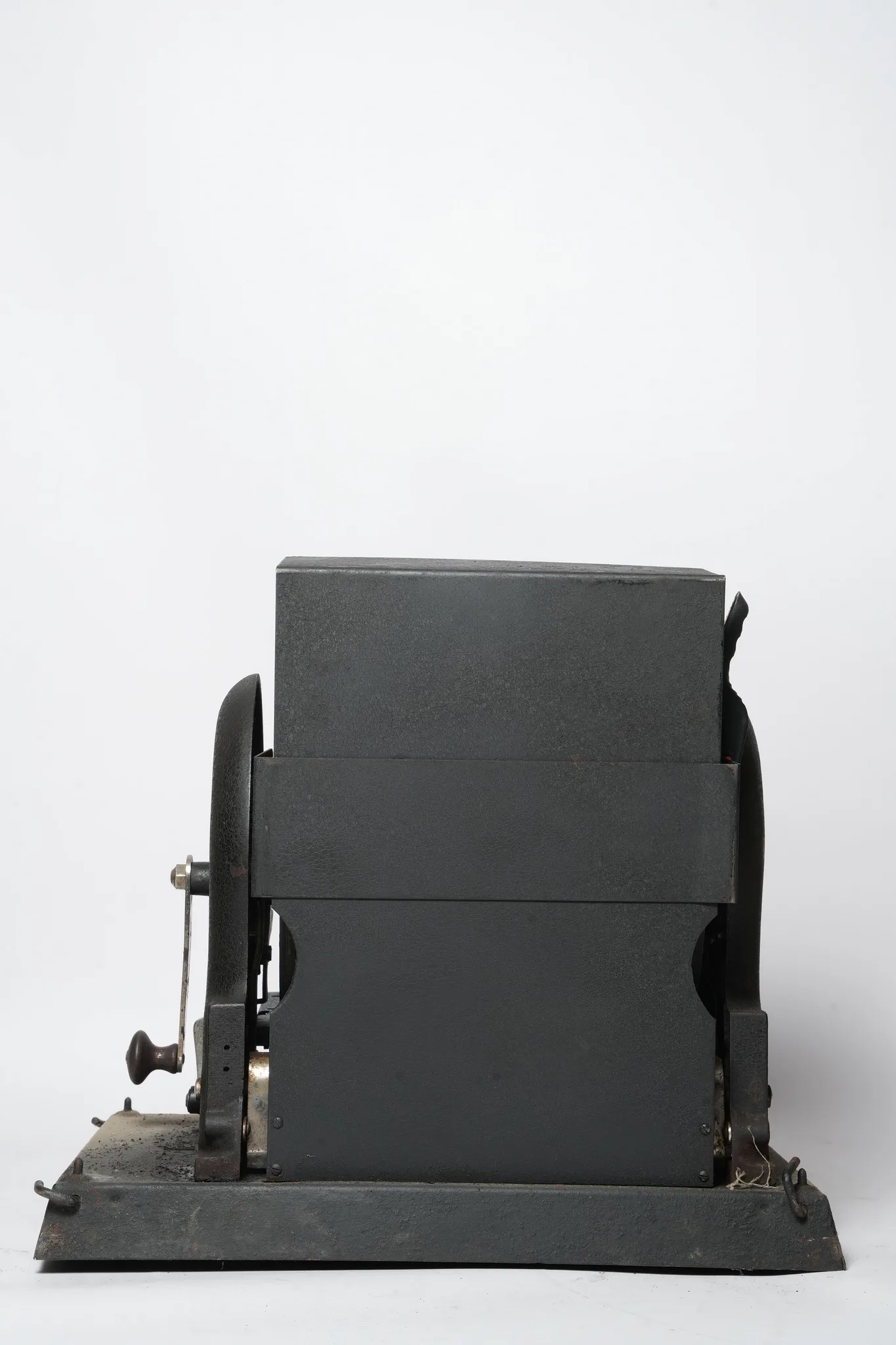

Designed to eliminate constant dark slide exchanges, this roll magazine allowed technical photographers to advance fresh emulsion swiftly between exposures using the mechanical top-mounted hand crank visible in the second photograph.
Field Transport
Rugged Protection in Transit

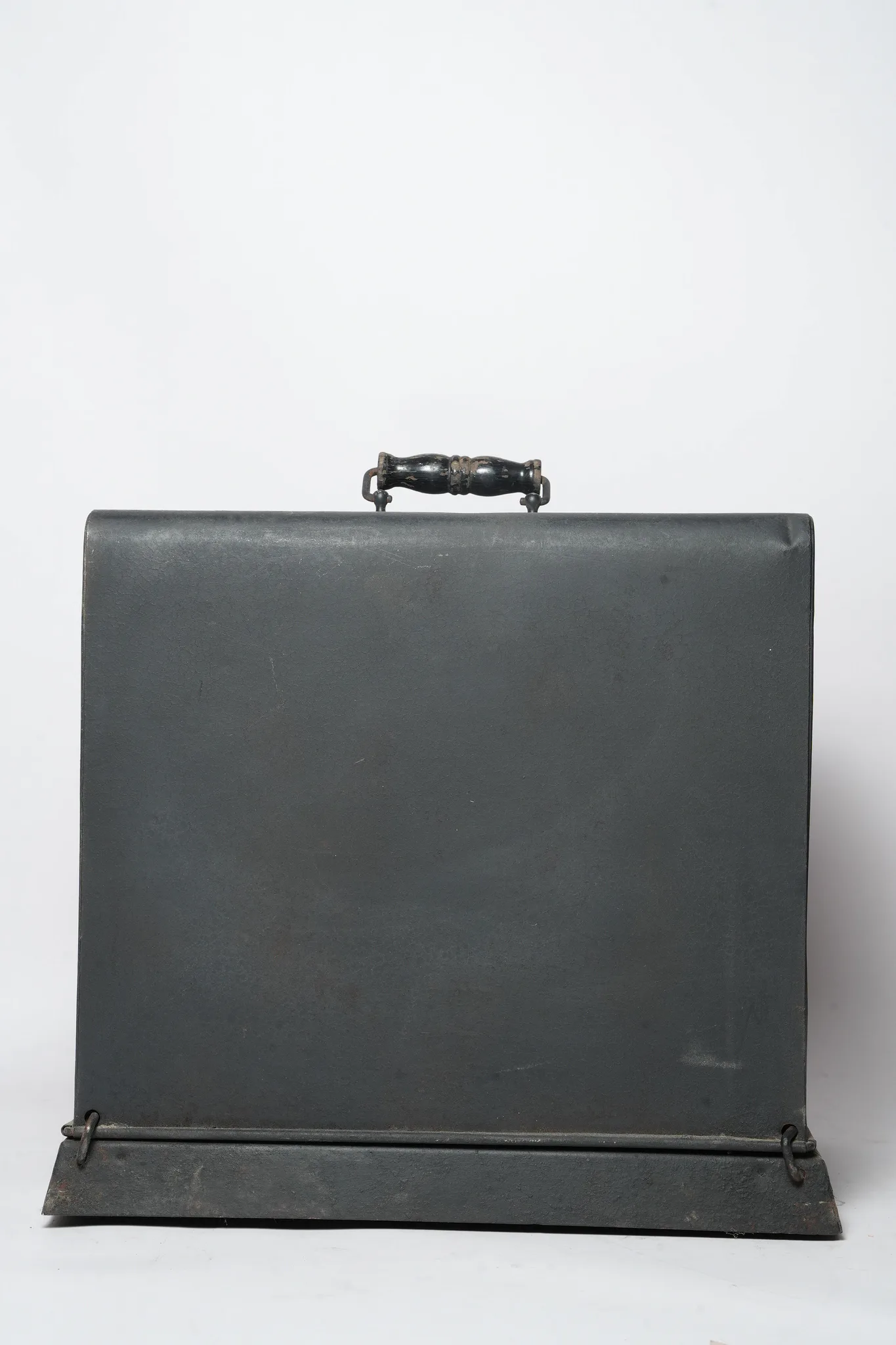

Shown closed in the first image, the fitted metal canopy latches firmly over the delicate internal rollers, transforming the intricate mechanical back into a self-contained, easily transportable unit via its integrated turned wooden handle.
Timeline
An object in time,
one continuous story.
ca. 1925
Advent of Large-Format Roll Adapters
Commercial and technical photography studios adopt specialized roll film backs to accelerate multi-exposure workflows.
ca. 1930
Production Era
Manufacture of heavy-gauge manual roll magazines incorporating durable wrinkle finishes and robust field-ready transport cases.
ca. 1945
Postwar Industrial Documentation
Widespread utility of high-capacity roll holders across reproduction, document copy, and scientific laboratory recording setups.
Present
Collectible Artifact
Preserved as an intriguing artifact of pre-digital studio engineering and mechanical darkroom equipment design.
Condition
Honest wear,
documented clearly.
The unit exhibits authentic age-related patina across all painted and bare metal surfaces. The black protective hood retains solid structural form with minor surface scuffs, localized finish wear, and light oxidation along the edges and base flange. The internal mechanism shows intact wrinkle lacquer on the cast frame, honest mechanical wear around the crank assembly, and sound structural integrity throughout.
✓
InspectedProtective Hood & Handle
Outer metal casing displays scattered surface abrasions, corner wear, and intact turned wooden handle with mild finish thinning.
✓
InspectedBase Flange & Latches
Heavy mounting plate shows authentic edge oxidation, light surface grime, and fully intact dual wire bail latching loops.
✓
InspectedCrank & Drive Assembly
Manual winding crank retains its dark wooden knob and securing nut with smooth surface patina and no visible mechanical distortion.
✓
InspectedInternal Housing & Frame
Textured wrinkle finish on the cast bracket is well preserved with minor edge rubbing adjacent to the sheet-metal film chamber.
