01
Modular Handle System
Features a heavy-gauge chrome and ribbed black universal handle with an integrated voltage adjustment collar.
Curio Gallery
01 / 04

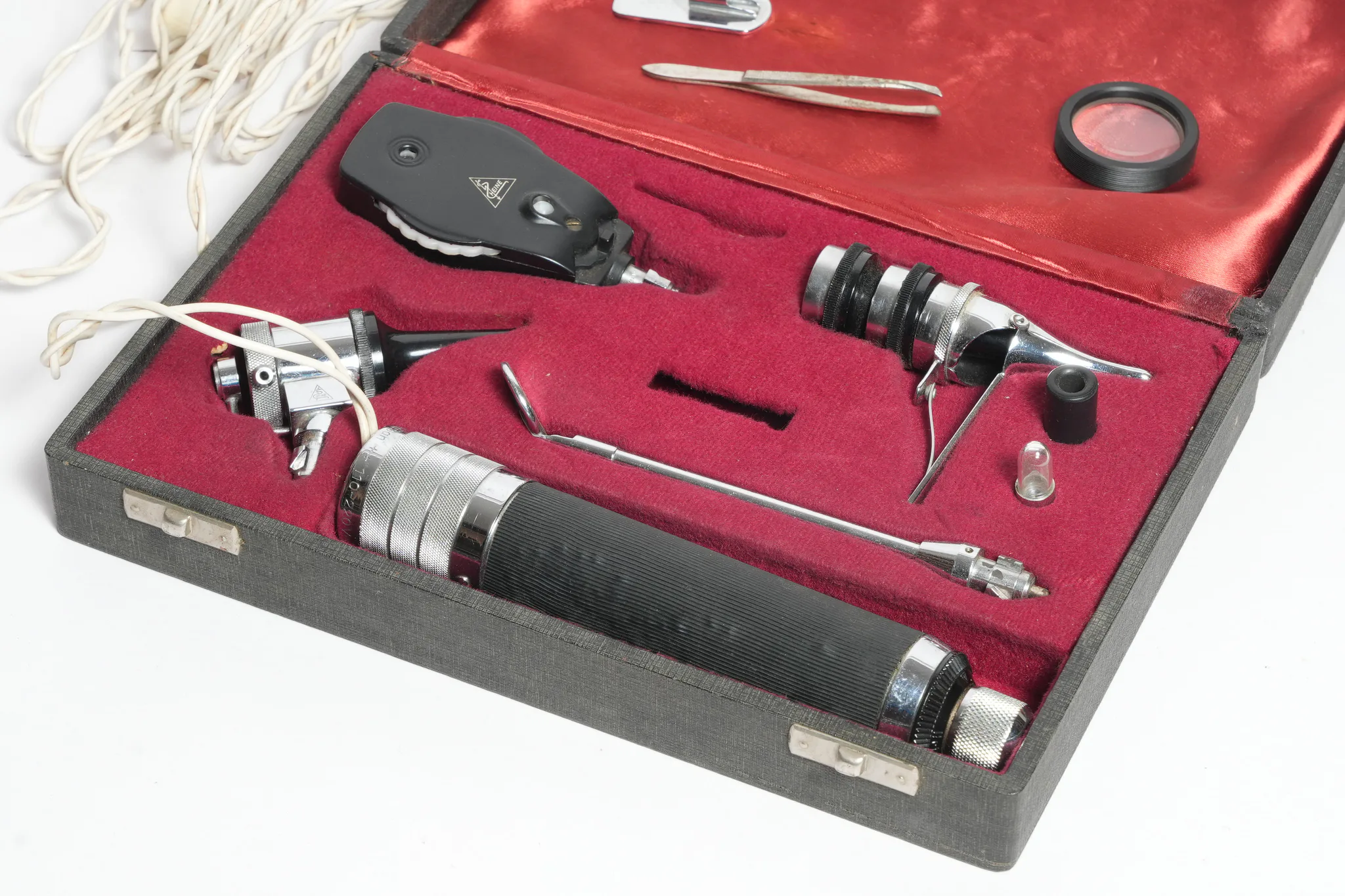

01 / 04Heine Vintage Medical Diagnostic Set — photograph 3
Highlights
Why this object
still matters.
This vintage Heine diagnostic set contains a comprehensive suite of medical instruments fitted into a hard-shell presentation case with red velvet lining. Built around a universal powered handle, the set includes an ophthalmoscope head bearing the classic triangular Heine emblem, an otoscope with speculum, a nasal speculum, and an illuminated throat probe. Additional examination accessories including a filter lens, forceps, and a spare bulb are retained within the satin-lined upper lid.
02
Direct Ophthalmoscope Head
Houses an internal lens wheel and viewing aperture, identified by Heine's vintage triangular brand hallmark.
03
ENT Diagnostic Attachments
Includes a dedicated otoscope head, spring-actuated nasal speculum, and an elongated bent throat probe.
04

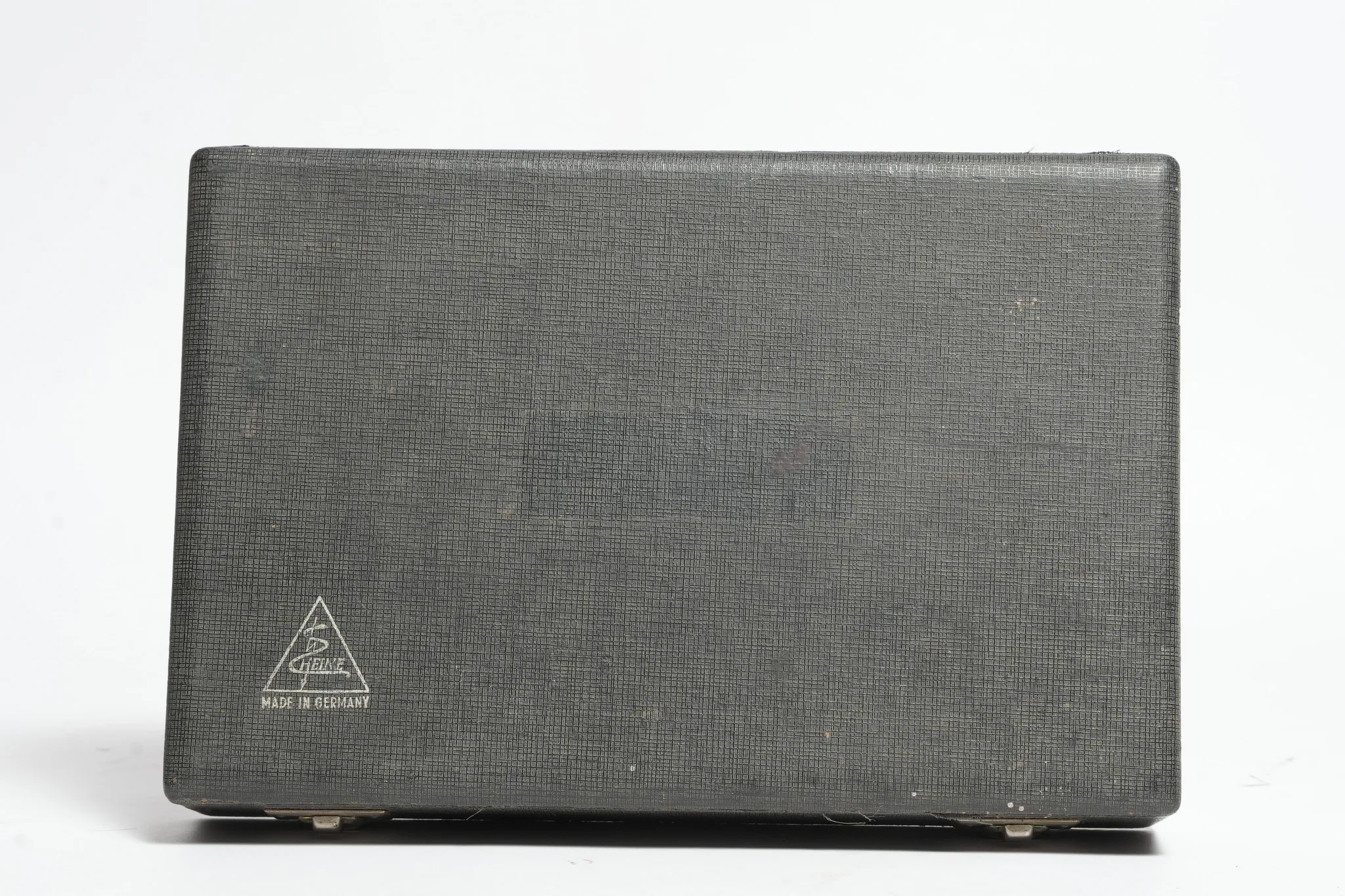

Original Fitted Case
Housed in a dual-latch textured case contoured with form-fitting red velvet inserts for each instrument.
05
Lid Utility Storage
Upper satin lid contains dedicated clips and retaining slots holding examination tweezers, a glass lens, and a metal slide.
06
Vintage Wired Power Supply
Supplied with an extensive vintage coiled two-pin electric supply cable and spare miniature screw-in bulb.
Specifications
The useful facts,
clearly recorded.
Measurements, construction, identity, and seller-supplied details are kept together for direct comparison.
Reviewed · Curio catalogue
Maker
Heine Optotechnik GmbH & Co. KG (Herrsching, Germany)
Origin
Germany
Year
1965
Department
scientific-instruments
Packed shipment
4 kg · 40 × 30 × 25 cm
Manufacturer
Heine Optotechnik
Instrument Types
Ophthalmoscope, otoscope, nasal speculum, laryngeal probe
Handle Construction
Chromed metal with knurled collars and ribbed black sleeve
Voltage Selector
Switchable knurled collar marked for 110-220V operation
Case Lining
Molded red velvet lower insert with red satin lid lining
Included Accessories
Spare miniature incandescent bulb, circular lens, tweezers, power cable
Details
Close inspection,
recorded in photographs.

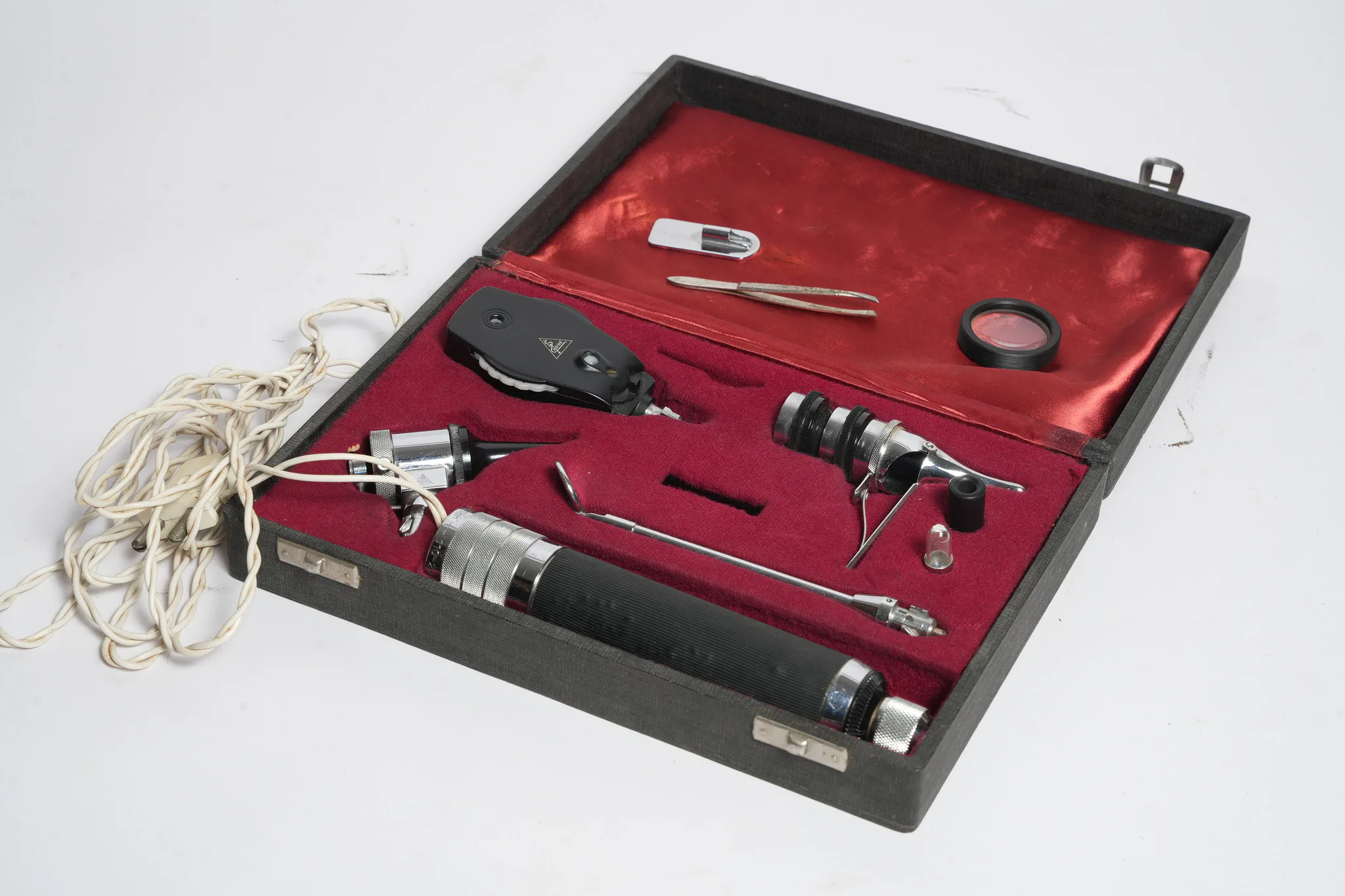

Detail № 01 · Heine Vintage Medical Diagnostic Set — photograph 1

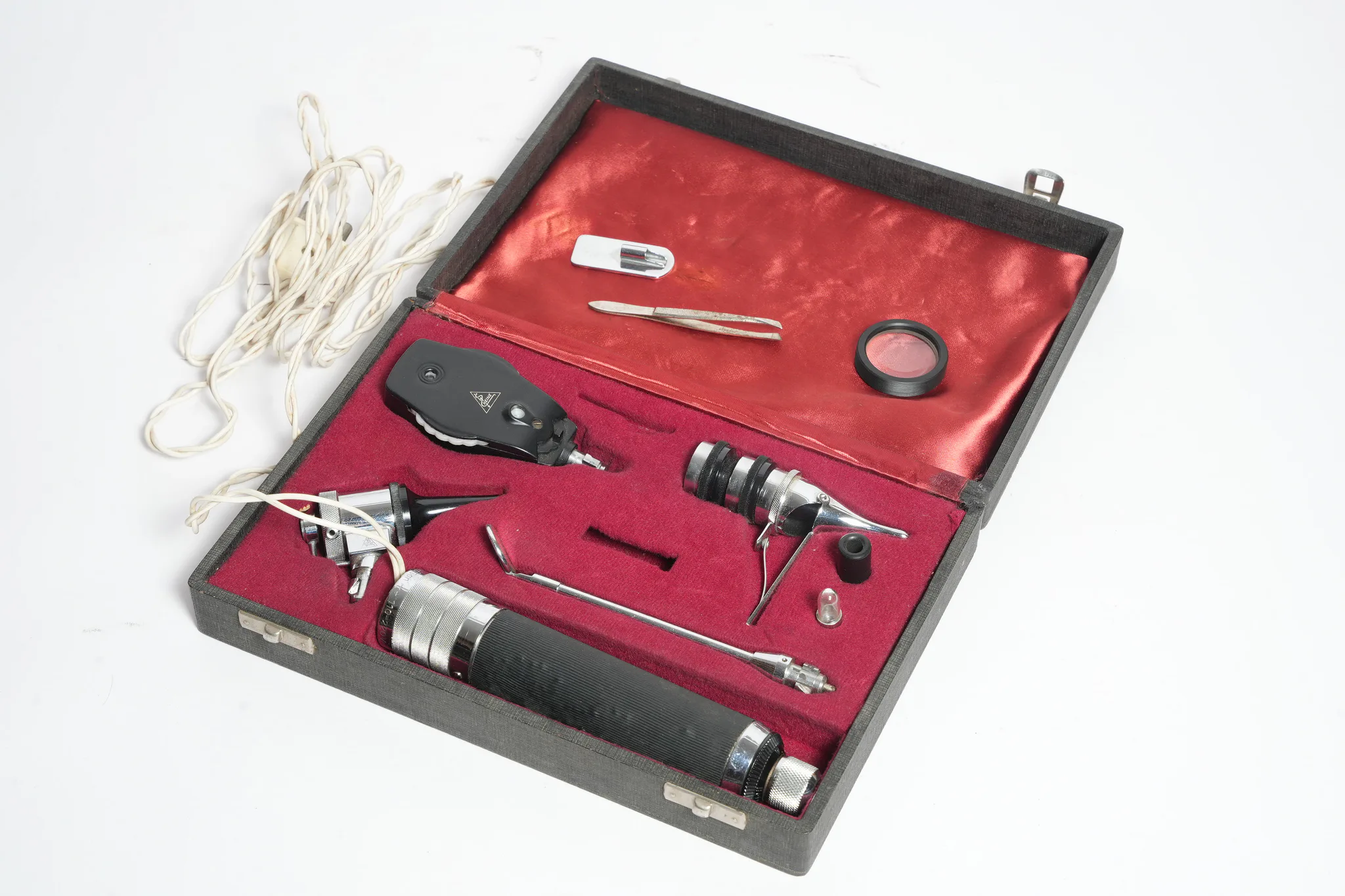

Detail № 02 · Heine Vintage Medical Diagnostic Set — photograph 2
Heritage
A traceable life,
carefully recorded.
Provenance documentation was not supplied for this specific Heine Vintage Medical Diagnostic Set; this listing is based on the supplied photographs only.
Precision Craftsmanship
Post-War German Optical Engineering
Founded in Bavaria in 1946, Heine pioneered durable hand-held diagnostic optics. The fine knurling, tight tolerances, and deep chrome plating visible across each head in the velvet tray reflect Germany's mid-century manufacturing renaissance.
Clinical Versatility
The General Practitioner's Toolkit
Designed for bedside visits and clinical consulting rooms, this modular set allowed physicians to swiftly swap between otoscopic, ophthalmic, and rhinoscope heads on a single powered body stored inside its transportable presentation case.
Timeline
An object in time,
one continuous story.
1946
Founding of Heine Optotechnik
Helmut A. Heine establishes the company in Herrsching, Germany, focusing on high-quality primary diagnostic instruments.
1960
Standardization of Modular Sets
Heine refines interchangeable diagnostic handles and modular heads for general practitioners and ENT specialists.
1970
Global Clinical Adoption
Heine diagnostic instruments become standard equipment across clinical practices worldwide due to their robust optical construction.
1980
Evolution to Fiber Optics
Subsequent generations transition from direct-bulb illumination to advanced fiber-optic and halogen lighting systems.
Condition
Honest wear,
documented clearly.
The diagnostic instruments and hard case are in well-preserved vintage condition. Bright chrome-plated components display minimal surface wear, while the textured black coatings on the handle and ophthalmoscope head remain intact. The fitted interior velvet shows light compression in tool recesses, and the white power cord exhibits light age-related discoloration.
✓
InspectedInstrument Heads & Metalwork
Chrome plating on the otoscope, specula, and handle fittings remains bright with light surface handling marks and no visible flaking.
✓
InspectedOphthalmoscope Unit
The black housing and aperture dial remain structurally intact, with the Heine triangular logo clearly legible.
✓
InspectedCase & Interior Lining
The black exterior case structure and metal latches are functional; the interior red velvet and satin lining show only modest dust and contact wear.
✓
InspectedCabling & Electrical
The bundled white mains cable shows light cosmetic discoloration and winding kinks consistent with vintage storage.
